How to Deploy a Bare Metal Cloud Server

Introduction

Bare Metal Cloud (BMC) servers provide access to dedicated resources in a single-tenant environment. With quick deployment, seamless resource scaling, and no virtualization overhead, BMC is an excellent choice for any type of environment.

Deploying a BMC server is an easy process, and it takes a few minutes. The guide will show you how to deploy a Bare Metal Cloud server via the phoenixNAP BMC portal.

How to Deploy a Bare Metal Server guide

Prerequisites

  • BMC or PNCP portal credentials. If you are a new client, create an account for Bare Metal Cloud.

Deploy New Server

To create a new BMC server via the GUI, log in to the BMC portal. The landing page is the Servers tab, where you can customize and deploy your new BMC server. Whenever you create a new server, it appears on this page.


Note: If you prefer using an API or CLI to create and manage BMC servers, refer to our Developer Portal.


To create a server, select the Deploy New Server button.

BMC portal deploy new server button

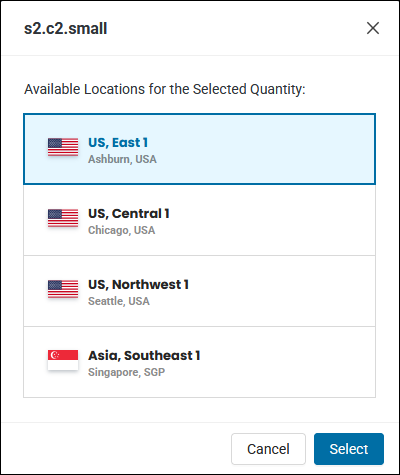

STEP 1: Select Location

Select a physical data center location for the BMC server. The pricing is the same for all locations, and you can choose any data center for the same price.

There are five available locations where you can deploy a BMC server with others coming soon:

  • Phoenix, USA
  • Ashburn, USA
  • Chicago, USA
  • Amsterdam, NLD
  • Singapore, SGP

BMC deploy server location selection

STEP 2: Billing Selection

The billing section allows you to select the desired billing model. The available options are:

  • Hourly billing. Deploy a server and pay by the hour with no contractual obligations. You will be charged a full hour even if you decommission a server before 60 minutes expire.
  • Reservations. Choose a period to reserve hardware resources. 12-month and longer reservations require you to agree to the terms and conditions. One-month reservations have auto-renewal enabled automatically.

BMC portal deploy server billing step


Note: To learn more about billing options and choose which is right for you, refer to our Bare Metal Cloud Billing Models guide.

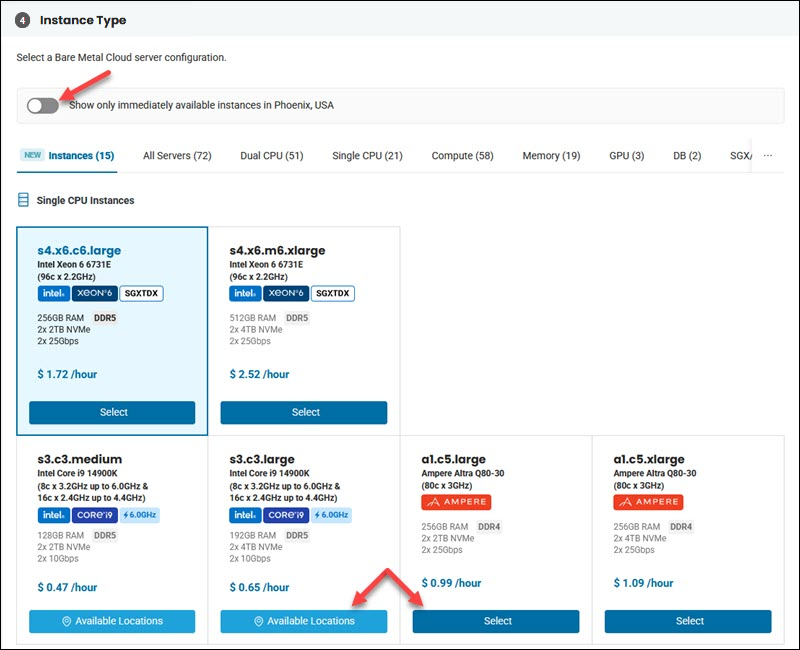

STEP 3: Server Configuration

This section offers multiple BMC server instances to choose from.

Select a single or dual CPU configuration. The bottom of every card shows the price for the selected billing model. The prices in this guide are for illustrative purposes.

BMC server configuration selection

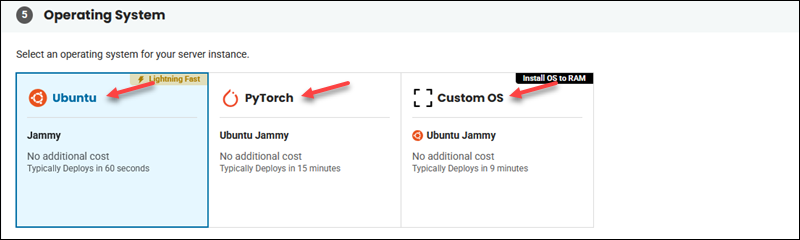

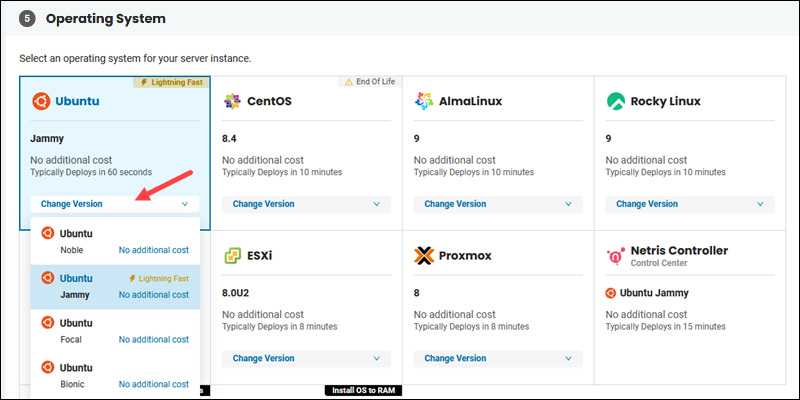

STEP 4: Choose Operating System

Select the OS you want to be installed on the server during deployment.

Ubuntu and CentOS incur no additional cost, while the Windows Server system requires a fee. Deployment time and the cost are visible in the operating system cards.

BMC server OS selection

For the fastest deployment, select Ubuntu. The server will be ready in one minute.

STEP 5: Specify Hostname

Enter a unique server name in the field. Optionally, add a server description to identify your servers better if the list gets extensive.

BMC specify hostname step

Once the server is deployed, the server description appears at the bottom of the server details page.

BMC server additional details field

STEP 6: Public IPs Selection

To allow access to your server directly from the Internet, select the Assign /29 IP allocation option. Your server gets 5 usable IPs.

If you choose Do not assign and create a private-only server, it will not be accessible from the Internet. You need to deploy a server with public access to reach the private one.

BMC public IPs selection step

To view the assigned IP addresses, go to the Servers page and click the name of the server you created.

BMC server network details.

STEP 7 and 8: Remote Access

You can access your BMC servers using SSH, BMC Remote Console, or, if you choose a Windows server, RDP. When deploying a Windows server, an additional step for Remote Desktop appears.

BMC server Remote Desktop selection step

The Remote Desktop step is optional if you only want to use SSH to access your server.

To specify who can access the server using RDP, select White Listed IPs.

Select Allow anyone to connect if you do not want to restrict RDP access.

To learn more, read our How to Access BMC Windows Server guide.

The Public SSH Key field is step 8 for Windows and step 7 for Ubuntu and CentOS (since the Remote Desktop option is hidden).

BMC portal SSH key field

Select the first field to choose a saved public SSH key from the list, if you have any. You can add a key from the SSH Keys Management screen.

To add a new public SSH key for the server you are deploying, select the + button.

Paste the key in the field. Select the same button again if you want to add multiple public keys.

BMC add SSH key field

When your server boots up, SSH will be set up and ready to use. The user root is disabled by default.


Note: Refer to How to Connect to a Server Using the BMC Remote Console Feature to learn more about remotely accessing your servers.

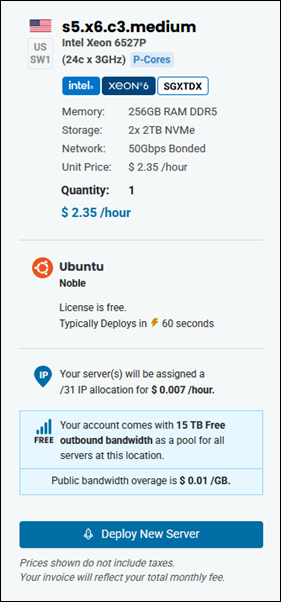

STEP 9: Review Configuration and Create BMC Server

The top-right side of the Deploy New Server screen shows the order summary and other BMC server details:

  • Server configuration.
  • Cost per hour or month without tax.
  • OS selection and license fee without tax.
  • Public bandwidth fee per GB.
  • IP allocation reminder.

BMC server configuration summary

When you are ready, select the Deploy New Server button to start the process. Depending on the OS you selected, server deployment takes from one to fifteen minutes.


Note: If you enable Remote Desktop access for your BMC Windows server, a pop-up box with the admin password appears. Copy the credentials and store them safely.

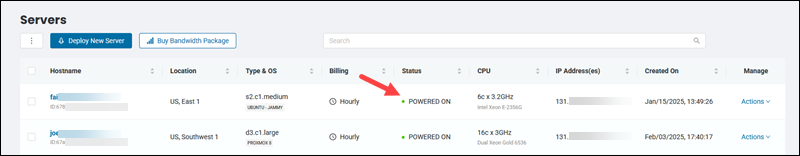

View BMC Server Status

Once you finish creating a BMC server, you are redirected to the Servers page.

The servers list contains columns with basic information for your Bare Metal Cloud instances. One of them is the Status column with the “Creating Server” message while the deployment is in progress.

Once your server is ready and powered on, the information is refreshed automatically, and the column reflects the status:

BMC portal server status page

When the server is powered on, you can access it and start installing apps and services. To deploy more servers, repeat the process and choose the configuration.


Note: The default maximum number of server instances in use for new BMC accounts is five. Please contact Sales if you need additional resources.


Conclusion

Your server is now up and running and ready to use. The BMC portal is a quick and easy way to spin up a new BMC server when you need it. You can also use an existing reservation to deploy a server.

Flexible billing models allow you to use one server for one hour or up to three years. With no noisy neighbors, productivity stays at the highest level.

Make sure to refer to our BMC Portal Quick Start Guide to learn more about the portal’s features.
